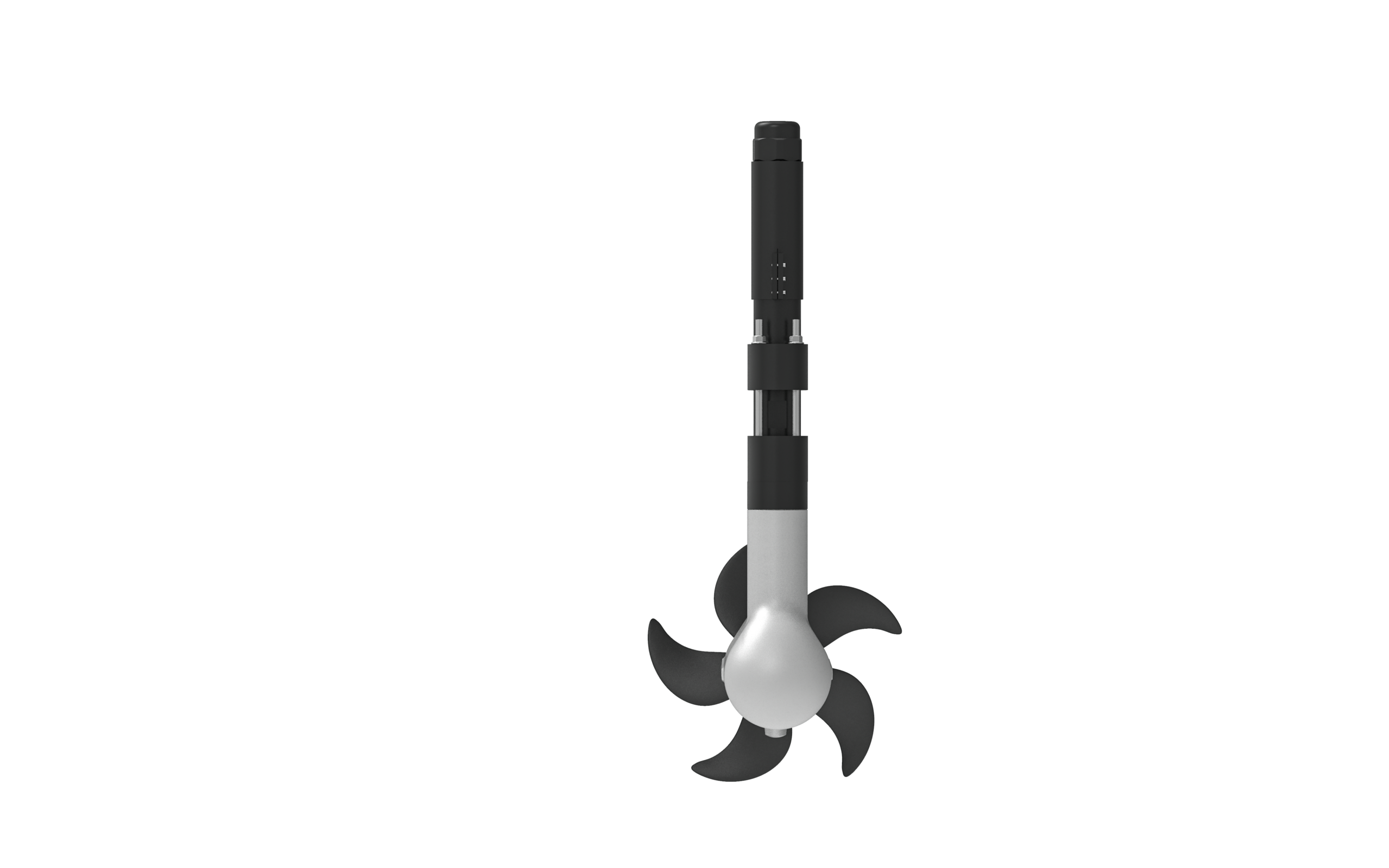

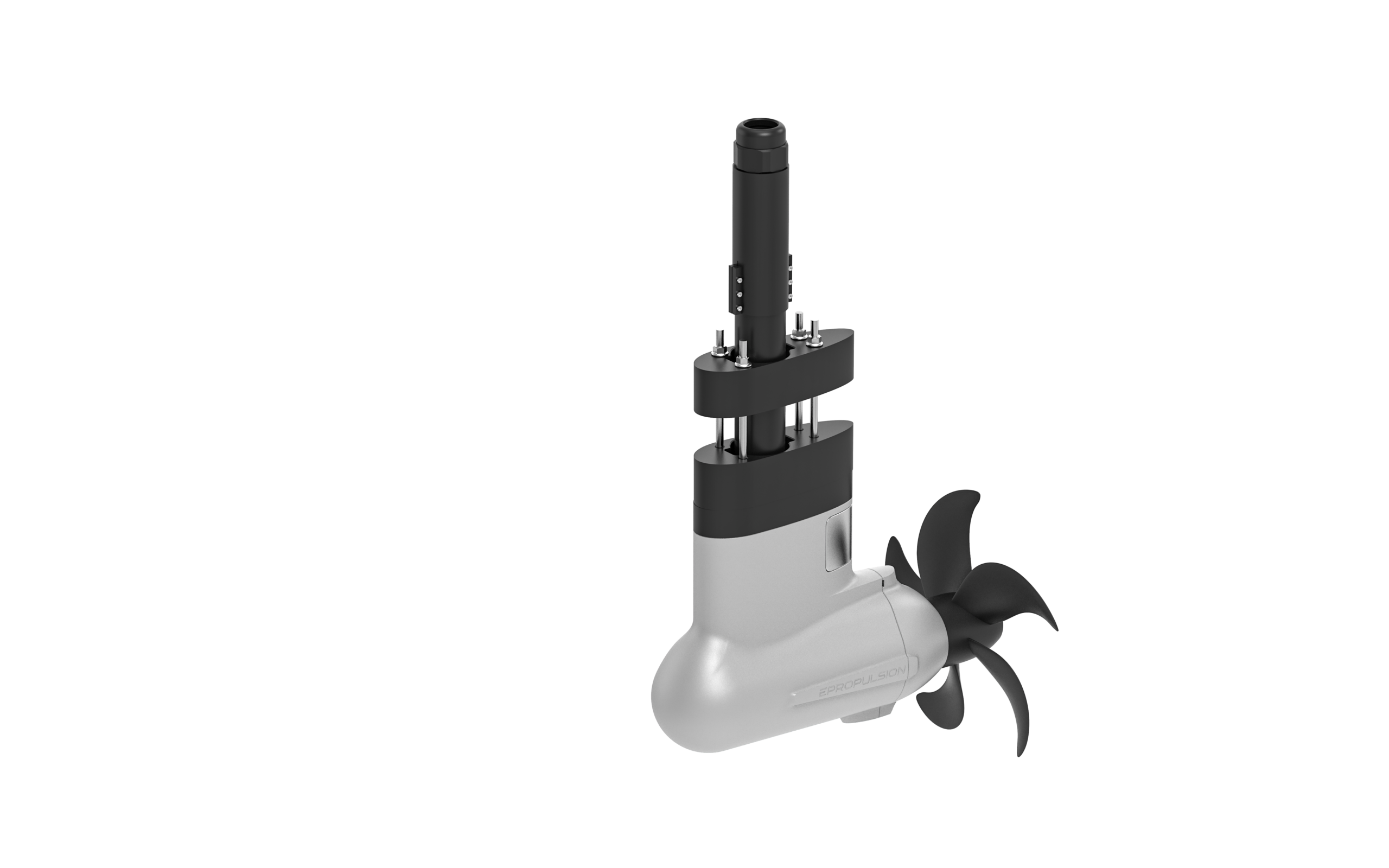

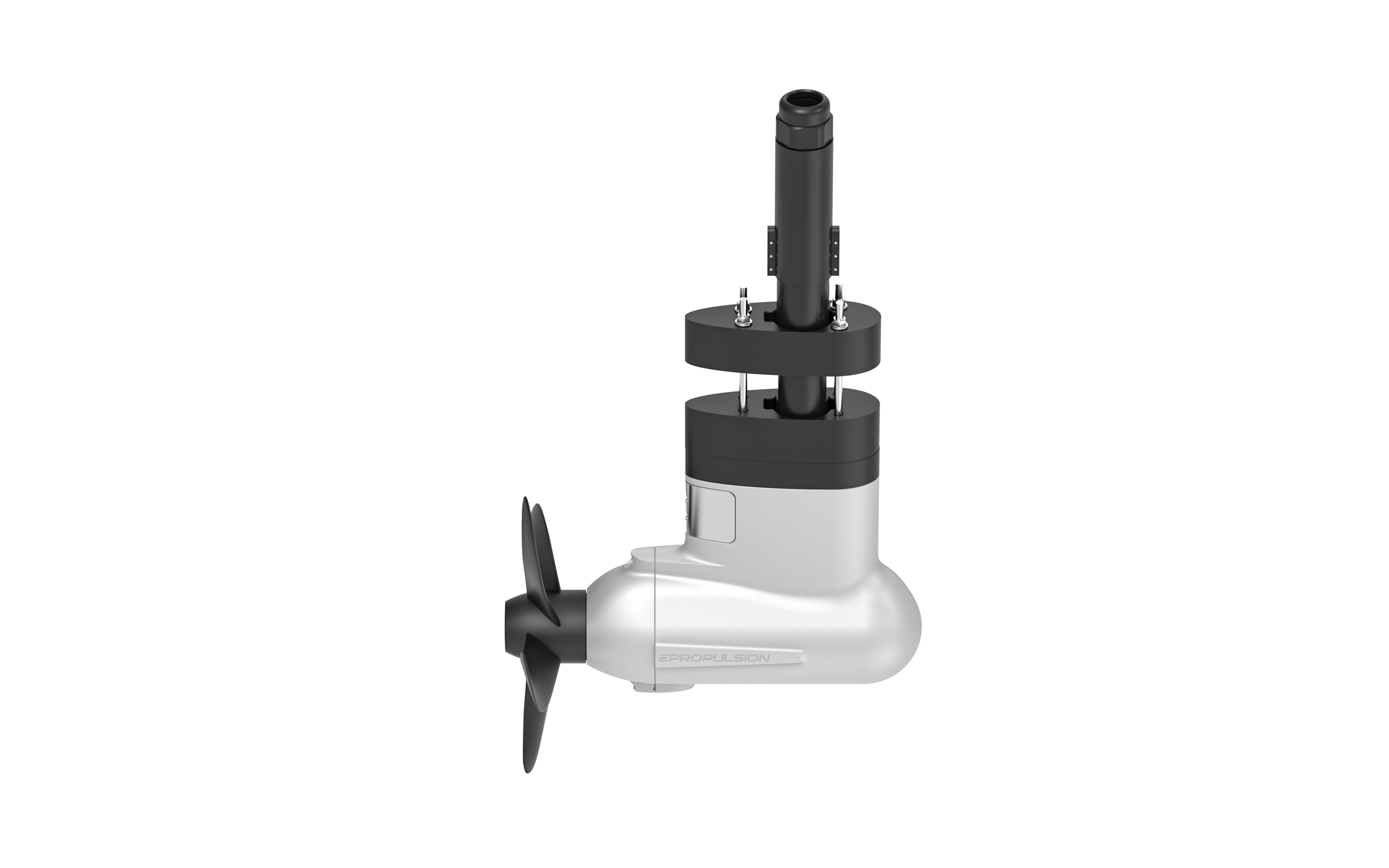

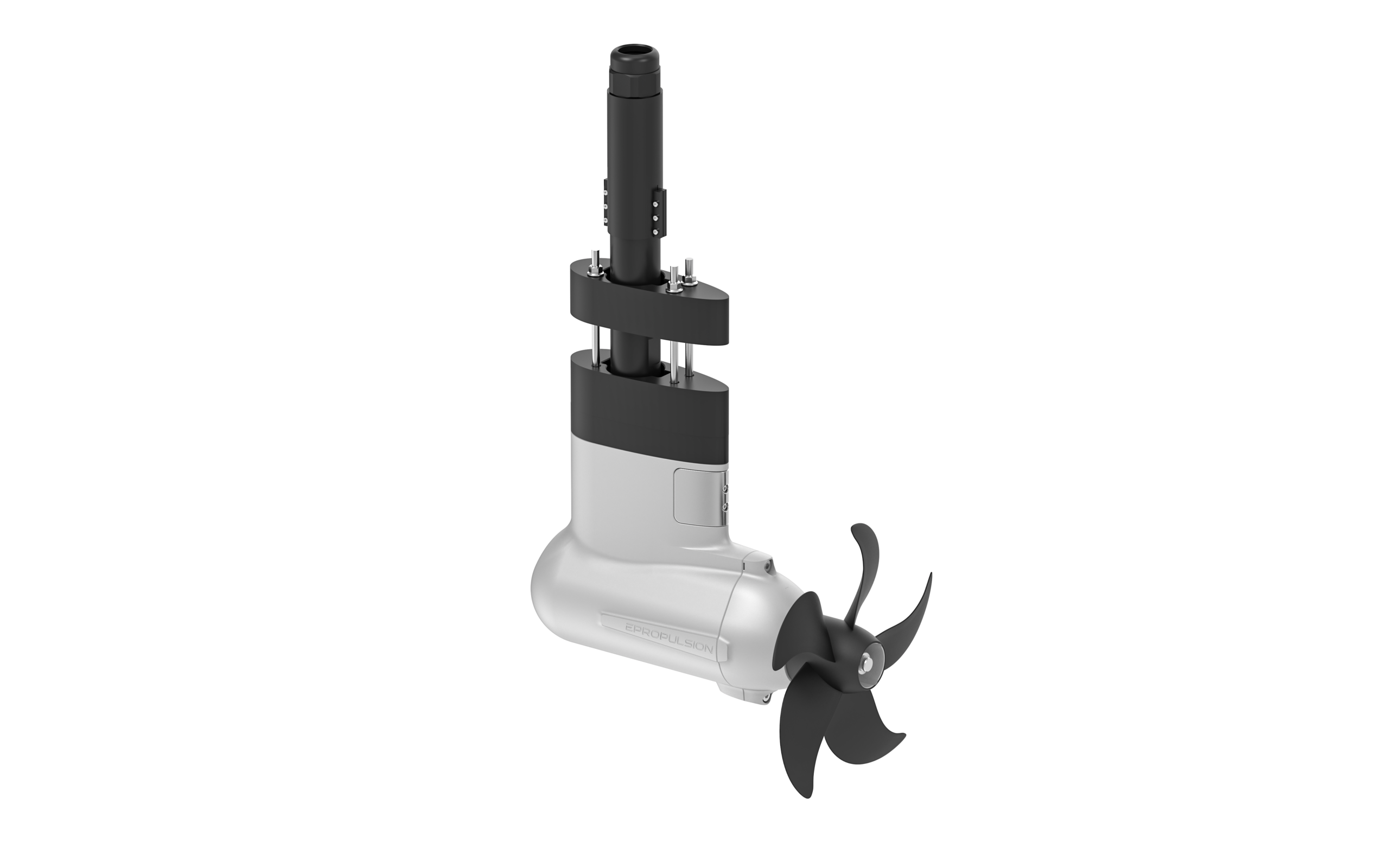

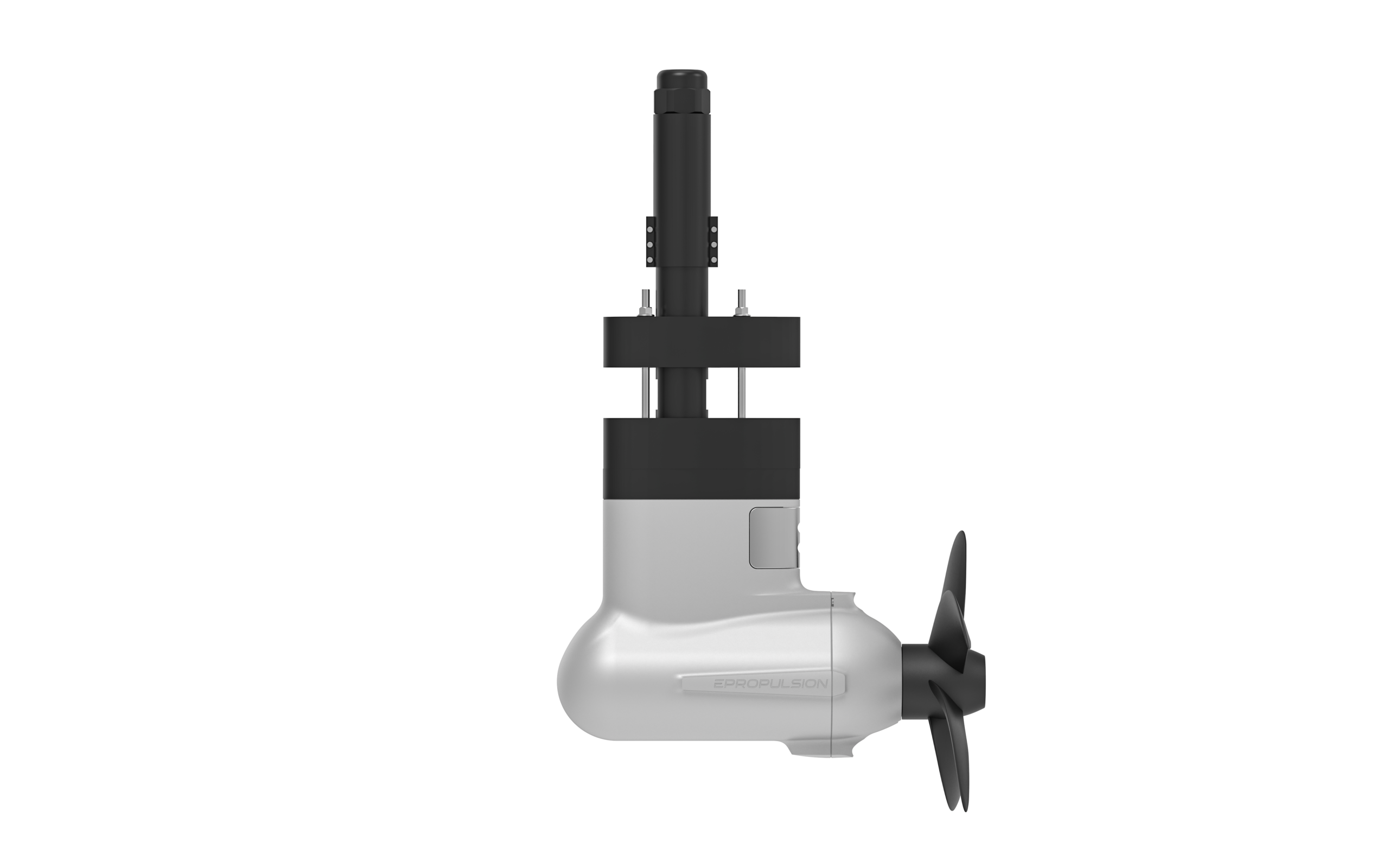

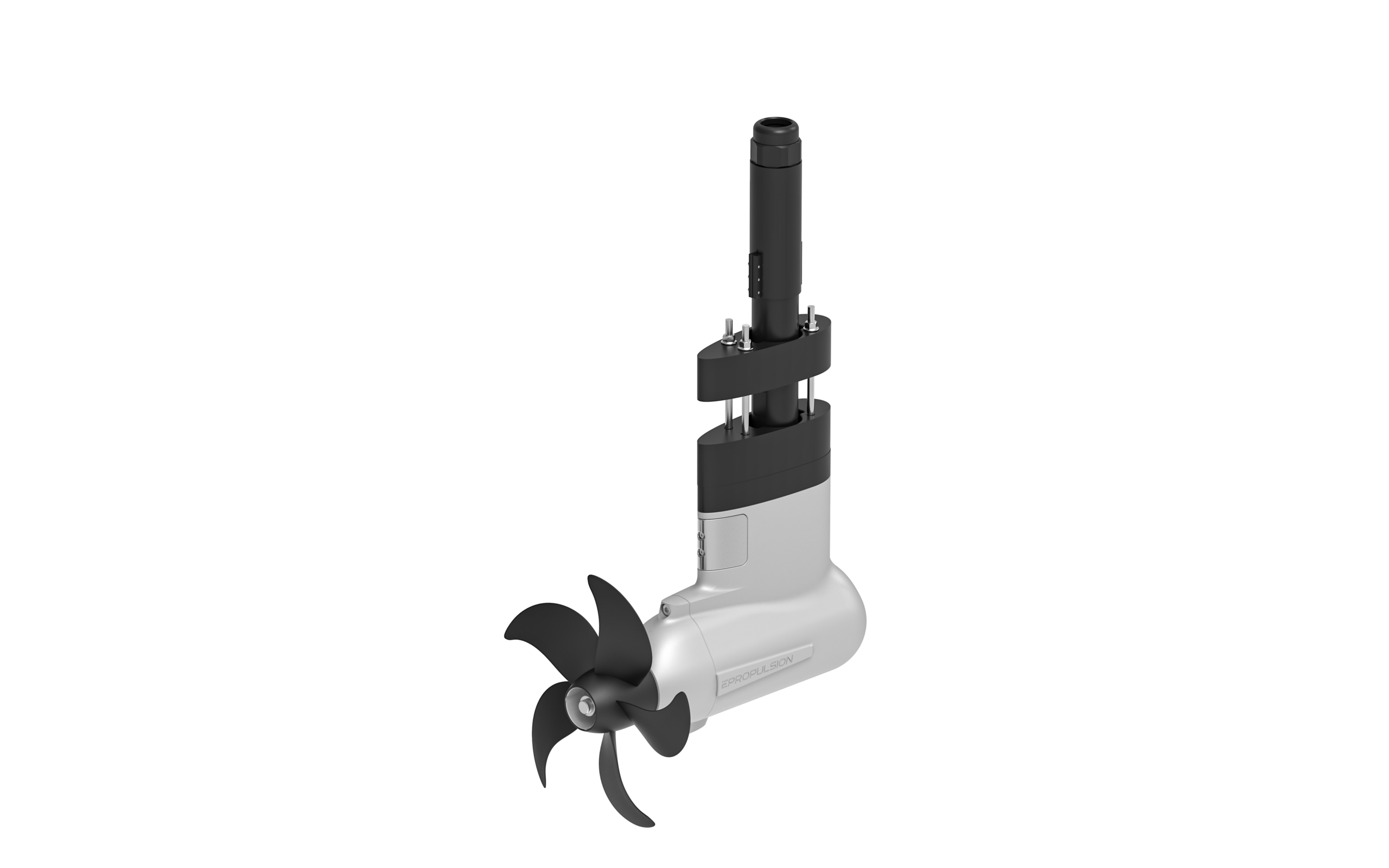

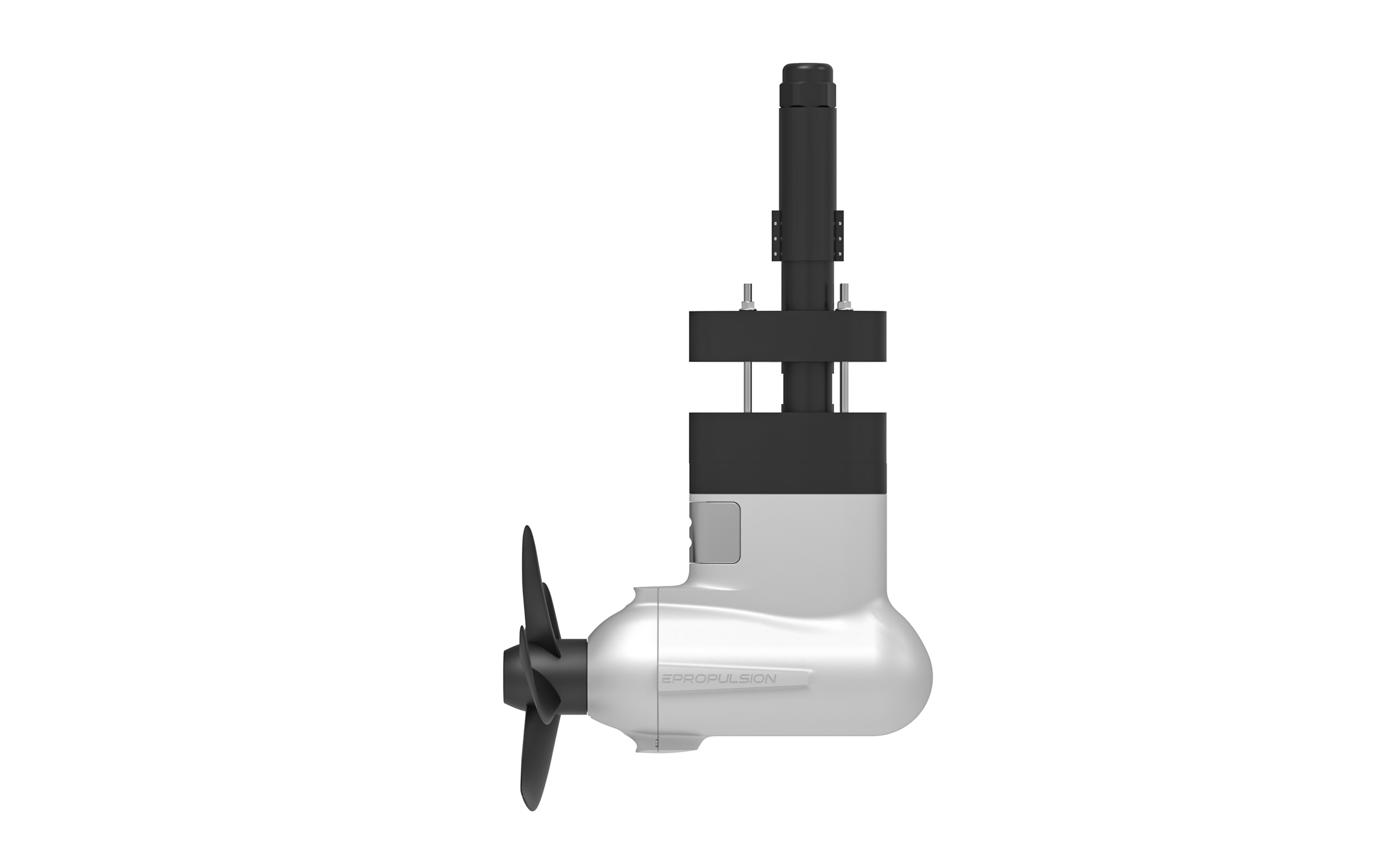

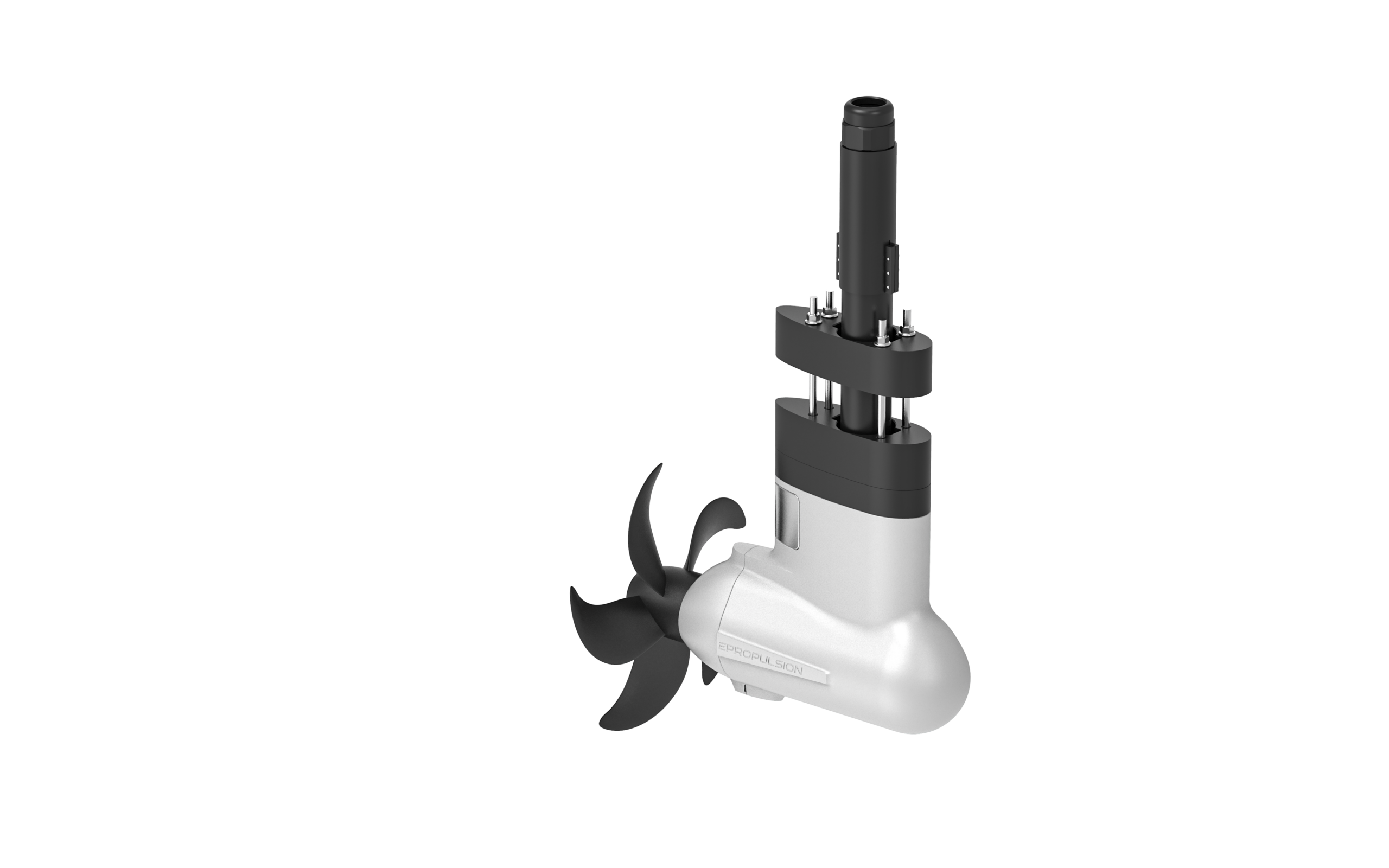

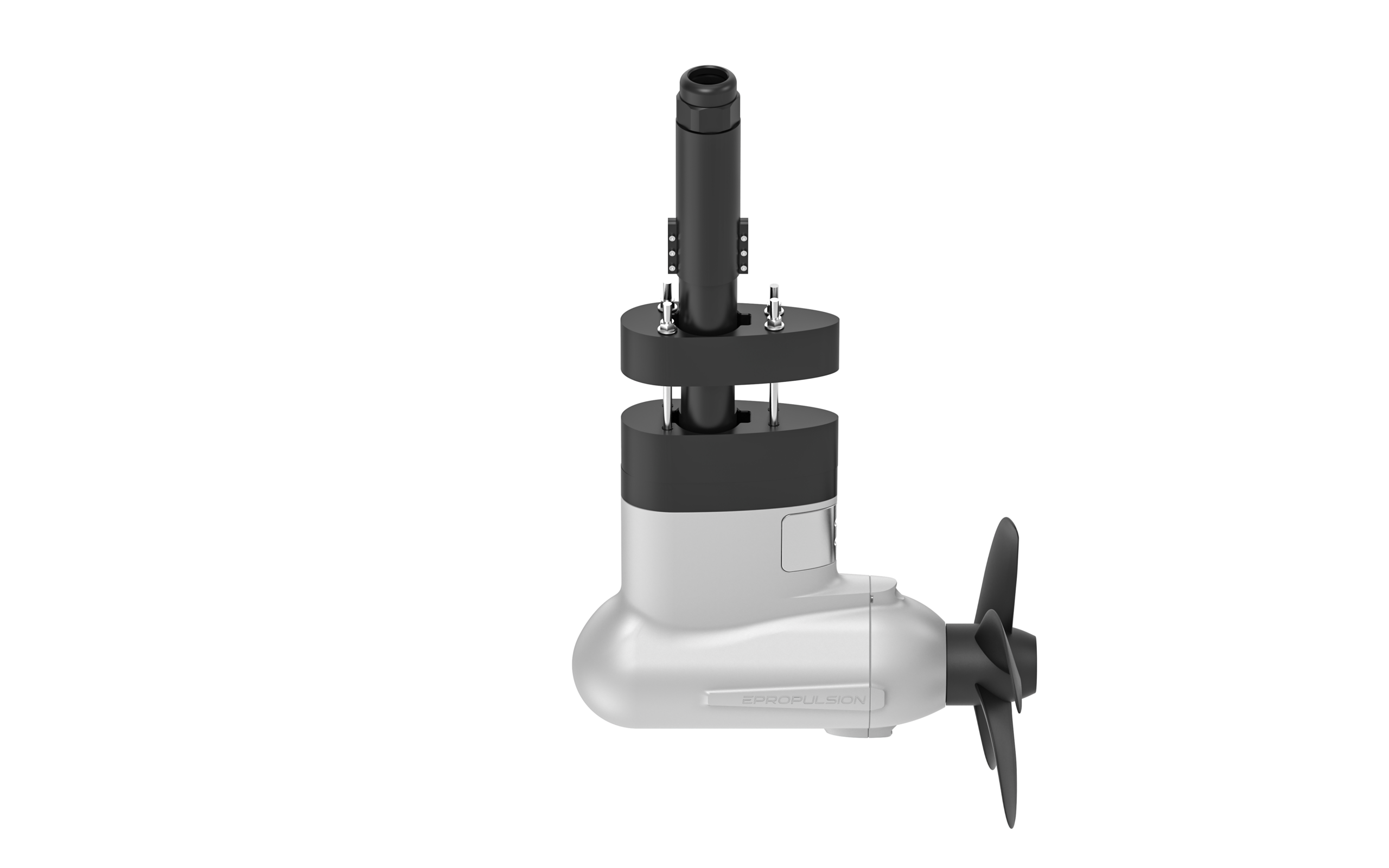

The Pod Drive eSSA motor unlocks new design freedom for naval architects, setting a fresh benchmark in marine innovation while elevating every vessel with luxury and sophistication.
5 468,75 € + vat
Built for durability and constant saltwater exposure, it is crafted from marine-grade, high-strength aluminium alloy for exceptional impact resistance and long-term reliability. Its self-cooling design dissipates heat naturally through water submersion, eliminating the need for cooling channels and frequent impeller replacements, and rigorous testing ensures dependable, low-maintenance performance in even the harshest marine environments.
The electric Pod Drive transforms onboard space by integrating the motor, propeller and cooling system into a single compact unit mounted beneath the hull. By removing the need for bulky inboard engines and complex shaft lines, it frees valuable interior volume for greater passenger comfort, additional amenities or expanded storage. This innovation enhances both design flexibility and luxury, allowing naval architects and boat owners alike to reimagine what is possible on the water.
The electric Pod Drive is designed for maximum flexibility, with straightforward installation and versatile mounting options that suit a wide range of vessel types. It is fully compatible with Volvo and Yanmar sail drive mountings, allowing quick integration that saves time and ensures a seamless fit, making it easy to elevate any design with minimal effort.
| POD DRIVE 12 ESSA | |
| Input power | 12 kW |
| Input voltage | 96 VDC |
| Weight
(driver unit included) |
31 kg (68.3 lbs) |
| Dimensions (L x W x H) | Motor: 603 x 420 x 122 mm
Driver unit: 285 x 250 x 192mm |
| Cooling System | Motor: Natural cooling
Driver unit: Fan cooling |
| Rated RPM | 1700 rpm |
| Propeller | 11 13/16″ x 9 13/16″ propeller
13” x 9 3/4” folding propeller |
| Weight | 31 kg |
|---|---|
| Max Engine Power (W) | 12000 |
