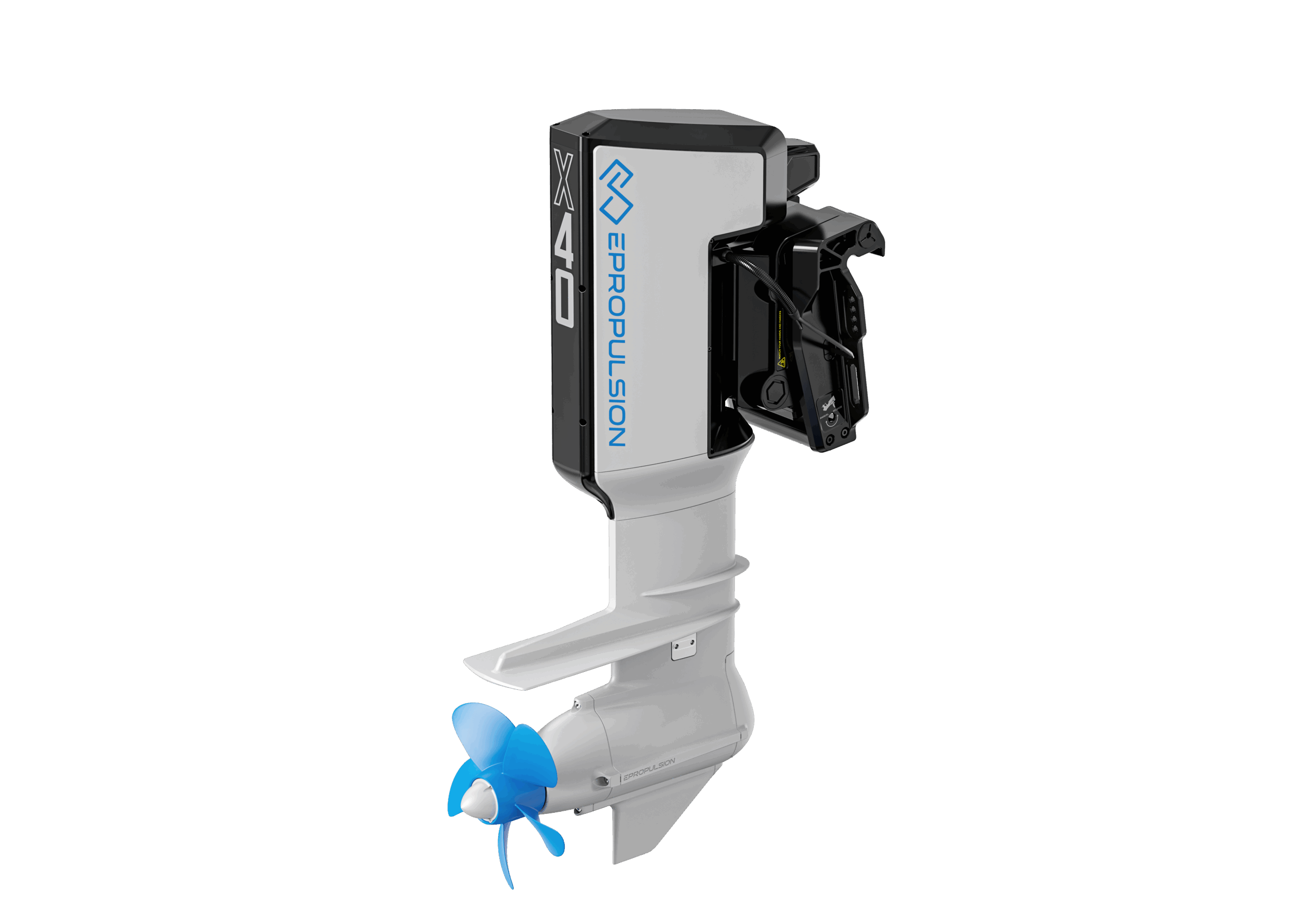

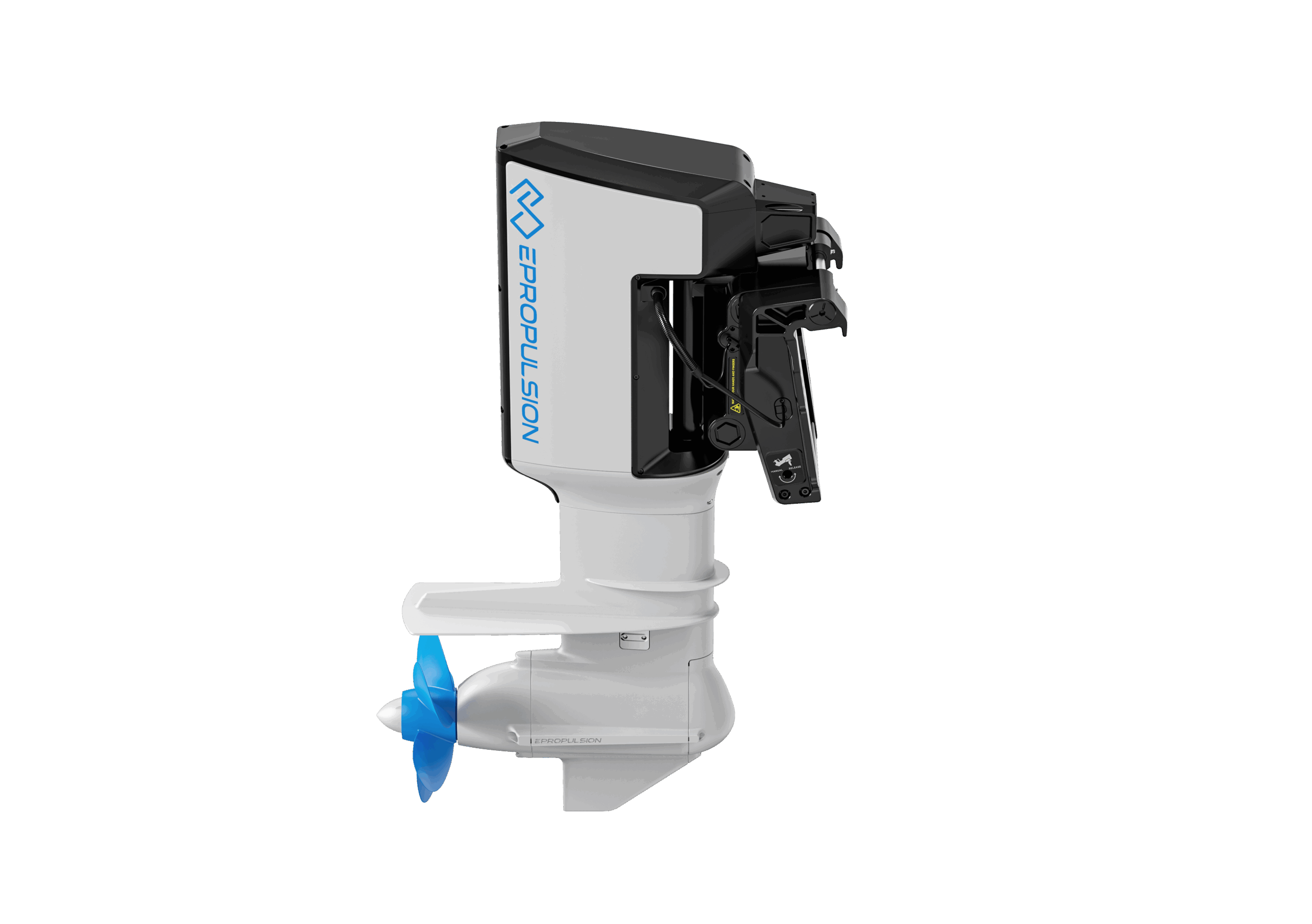

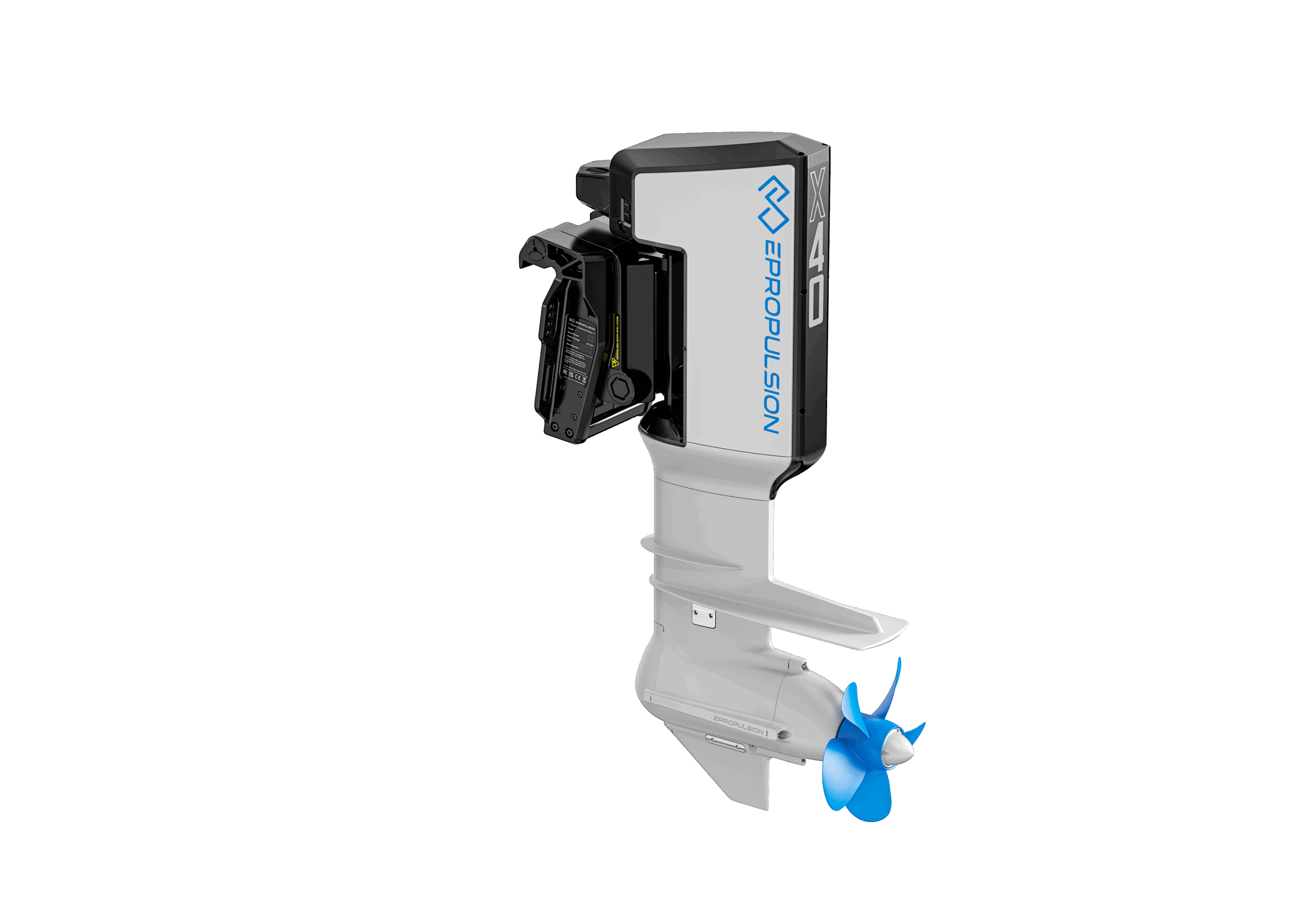

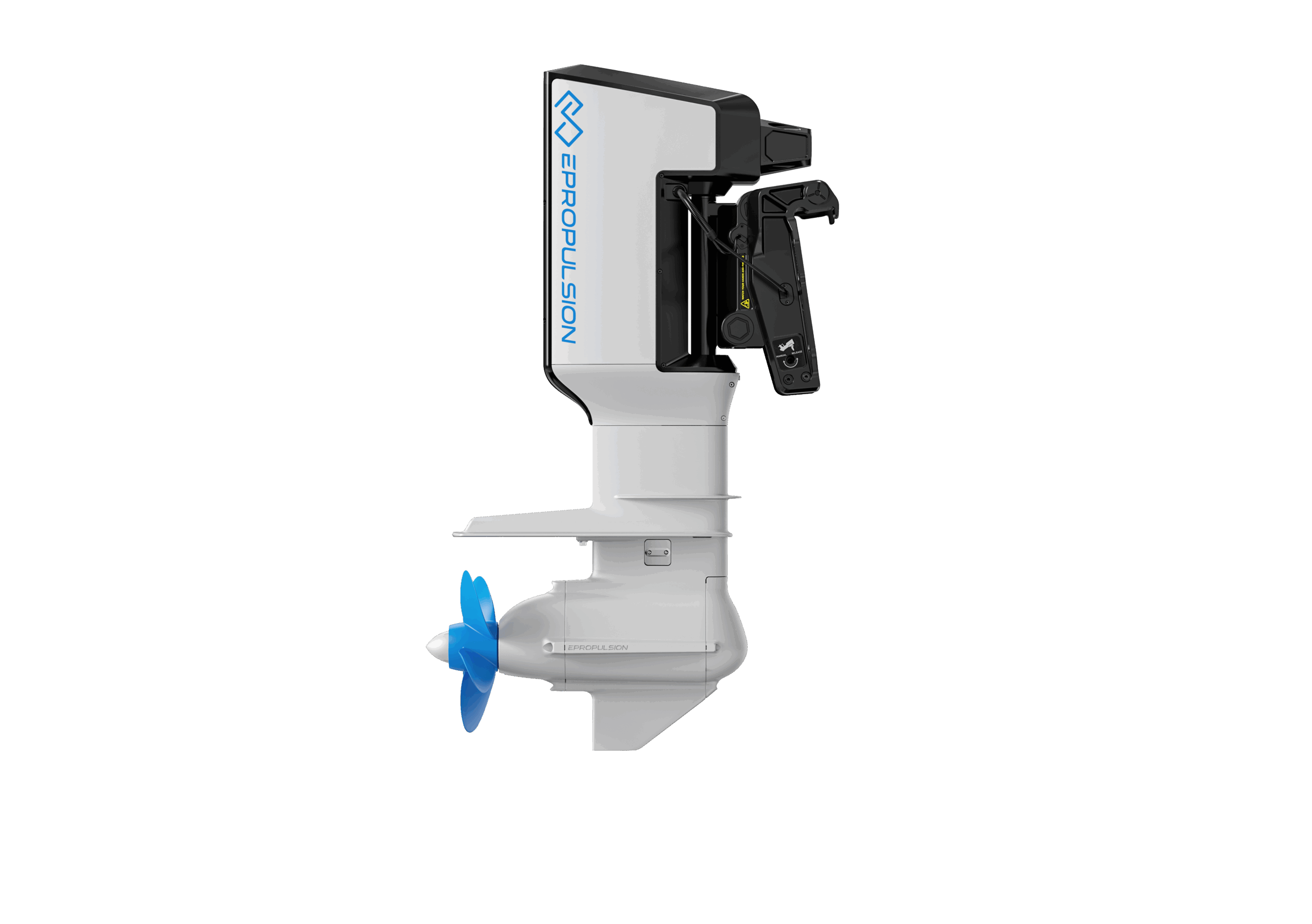

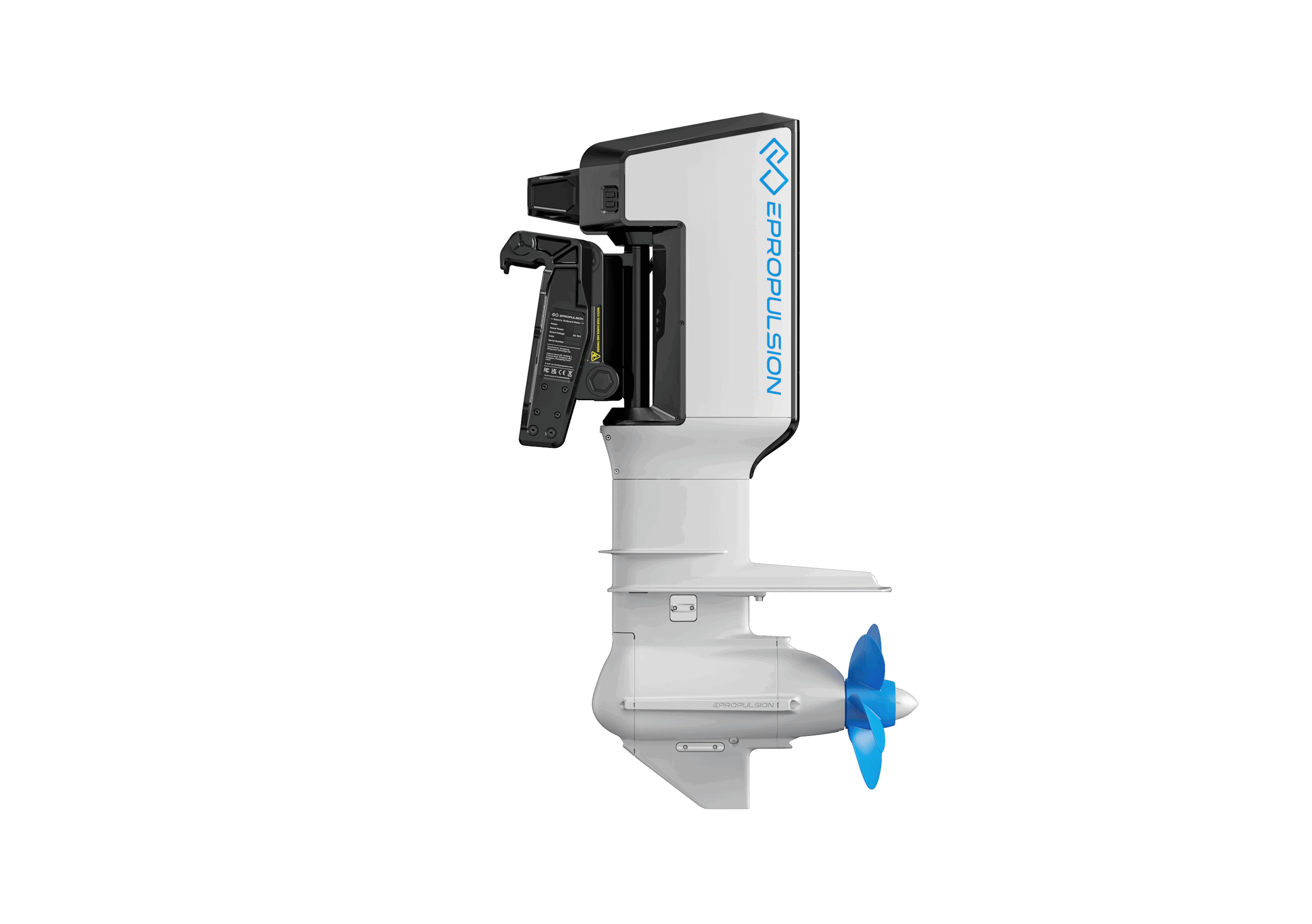

The X-Series is a breakthrough in marine electric propulsion, setting new standards for performance, efficiency, and sustainability.
13 250,00 € + vat
Precision-engineered and developed through advanced research and innovation, it combines high power density with intelligent control systems and a cutting-edge design.
The result is a propulsion solution that delivers maximum reliability, effortless handling, and a cleaner, more exciting boating experience.
| X-40 | ||
| L Shaft | XL Shaft | |
| Weight | 99kg | 101.5kg |
| Shaft Length | 508 mm (20″) | 635 mm (25″) |
| Dimensions (L x W x H) | 757 x 360 x 1233 mm | 757 x 360 x 1360 mm |
| Input power | 40 kW | |
| Nominal voltage | 96 VDC | |
| Cooling System | Closed Loop Liquid Cooling | |
| Rated rotational speed | 1500 – 2100 rpm | |
| Trim & Tilt | Power Trim/Tilt | |
| Trim/Tilt Angle | -4° to 61° | |
| Steering | Integrated electric steering | |
| Steering Angle | ±45° | |
| Propeller | 15″ x 10 3/4″ (available in L&R rotation) 13 3/8″ x 16 3/4″ (available in L&R rotation) |
|
| Weight | 104 kg |
|---|---|
| Shaft Length | Extra Long, Long |
