Experience unparalleled boating with our E-Series batteries, expertly designed for compatibility with ePropulsion’s Spirit, Navy, and POD motors. Offering consistent, high-quality power and sustainable technology, these batteries redefine marine propulsion for today’s mariner.
|

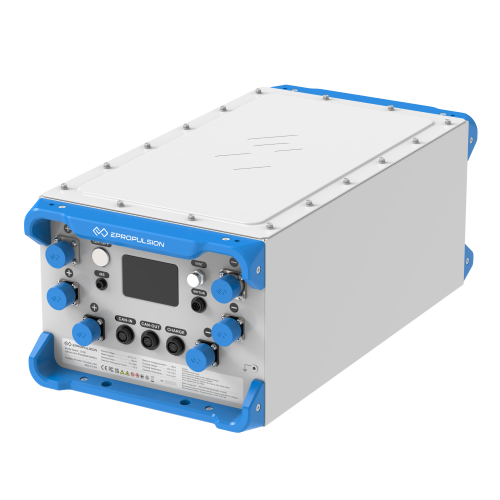

E100 |
|
| Capacity | 5120 Wh / 100 Ah |
| Rated Voltage | 51.2 V |
| Battery Life | 3,000 cycles at 80% SoH |
| Weight | 48.5 kg / 106.9lbs |
| Dimensions | 630 x 320 x 240 mm (24.8 x 12.6 x 9.5 in) |
| Cut-off Voltage | 41.6 V |
| Final Charging Voltage | 57.6 V |
| Max Continuous Discharging Current | 150 A |
| Series Connection | 2 (Cannot connect in parallel when used in series) |
| Parallel Connection | Up to 16 |
| Cell Configuration | 16S1P |
| Charger | E-Series battery charger or G-Series battery charger when upgraded to 96V system |
| Charging Time (220V) | One E100 Battery
With one E-Series charger: 5.1 hrs With two E-Series chargers: 2.6 hrs Two E100 Batteries are connected in series With one G-Series charger 16A: 3.5 hrs With one G-Series charger 32A: 1.8 hrs |
| Charging Time (110V) | One E100 Battery
With one E-Series charger: 8.5 hrs With two E-Series chargers: 4.3 hrs Two E100 Batteries are connected in series With one G-Series charger 16A: 7 hrs With one G-Series charger 32A: 3.5 hrs |
| Charging Temperature | 0 to 55℃ (32 to 131˚F) |
| Discharging Temperature | -10 to 60℃ (14 to 140˚F) |
| Communication | One RS485 for ePropulsion 48V motors
One CAN (twoports) for parallel or series batteries One CAN for ePropulsion 96V motor One CAN for 48V or 96V charger |
| Shipping Classification | UN3480, Class 9, UN38.3 Certified |
| Approvals | CE, UKCA, FCC |
| Warranty (Non-Commercial Use) | 2 years |
| Weight | 48,5 kg |
|---|
